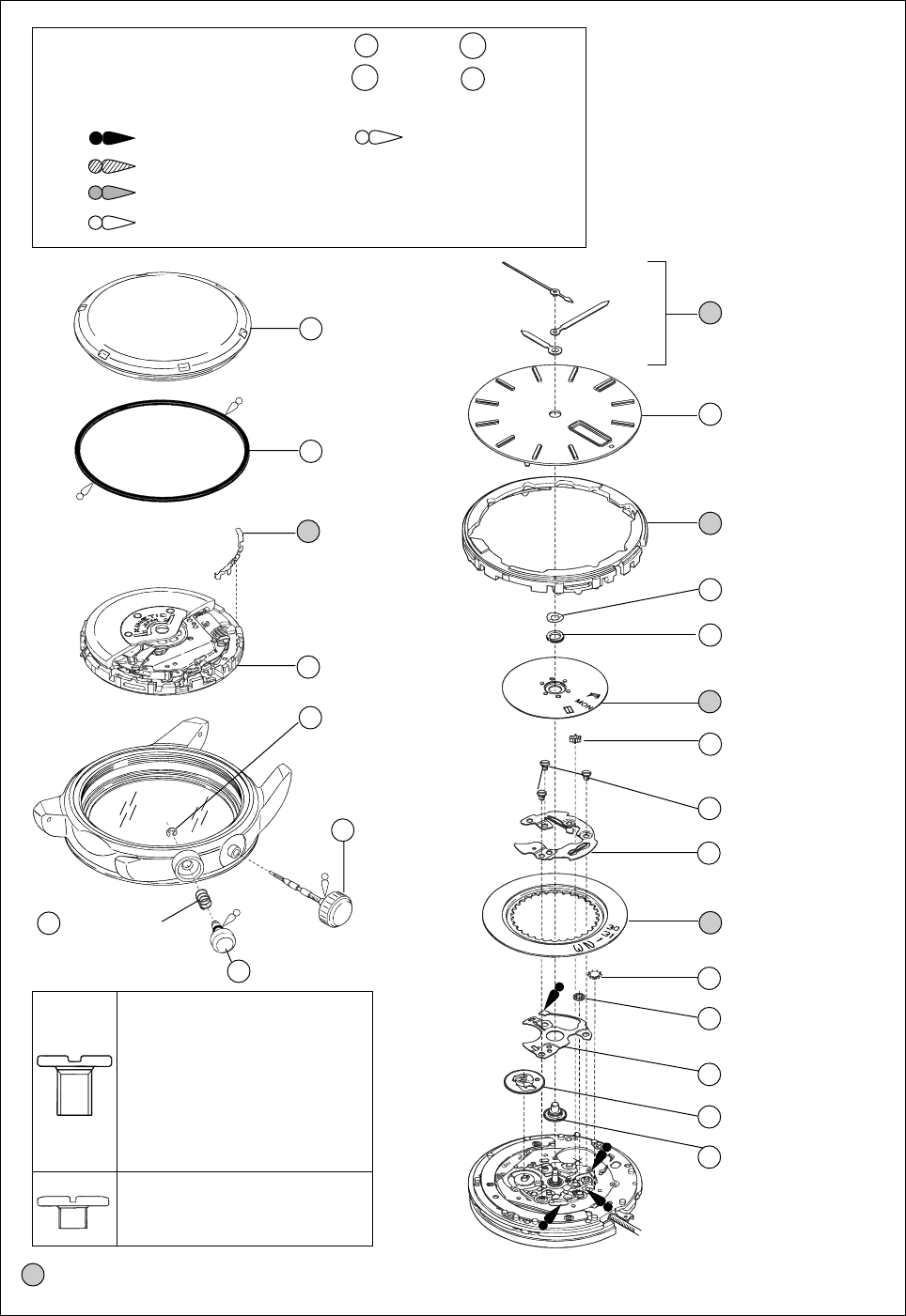

PARTS CATALOGUE

Disassembling procedures Figs. : 1 → 61

Reassembling procedures Figs. : 61 → 1

Lubricating: Types of oil Oil quantity

Moebius A Normal quantity

Moebius F

SEIKO Watch Oil S-6

Silicone oil 500,000 c.s.

➡

Please see the remarks on the following pages.

Lubricating of some parts is shown in “II. REMARKS ON DISASSEMBLING AND REASSEMBLING”.

Cal. 5M62A, 5M63A

0022 247

• Date dial guard screw (3 pcs.)

• Rechargeable battery clamp screw

(2 pcs.)

• Circuit block cover screw (2 pcs.)

• Oscillating weight bridge screw

(2 pcs.)

• Coil block screw (1 pc.)

• Train wheel bridge screw (1 pc.)

0022 490

• Oscillating weight screw (1 pc.)

1 Case back

2 Case back

gasket

4 4281 500

Contact point

spring (*)

5 Movement

8 Button spring

6 Button spring

clip

9 Hour, minute and

second hands

12 0491 589

Dial washer

13 0963 781

Snap for day star with

dial disk

(Only for Cal. 5M63A)

16 0022 247

Date dial guard screw

15 0989 660

Intermediate wheel for

day correction

(Only for Cal. 5M63A)

17 0808 660

Date dial guard

18 Date dial

19 0737 670

Day-date corrector wheel

20 0962 670

Intermediate wheel for

calendar corrector

21 0810 660

Date jumper

14 Day star with dial disk

(Only for Cal. 5M63A)

10 Dial

11 Holding ring for dial

22 0816 670

Date driving wheel

23 0271 670

Hour wheel

7 Button

* The contact point spring

is not assembled in

models with screw-lock

type crown.

3 Winding stem
