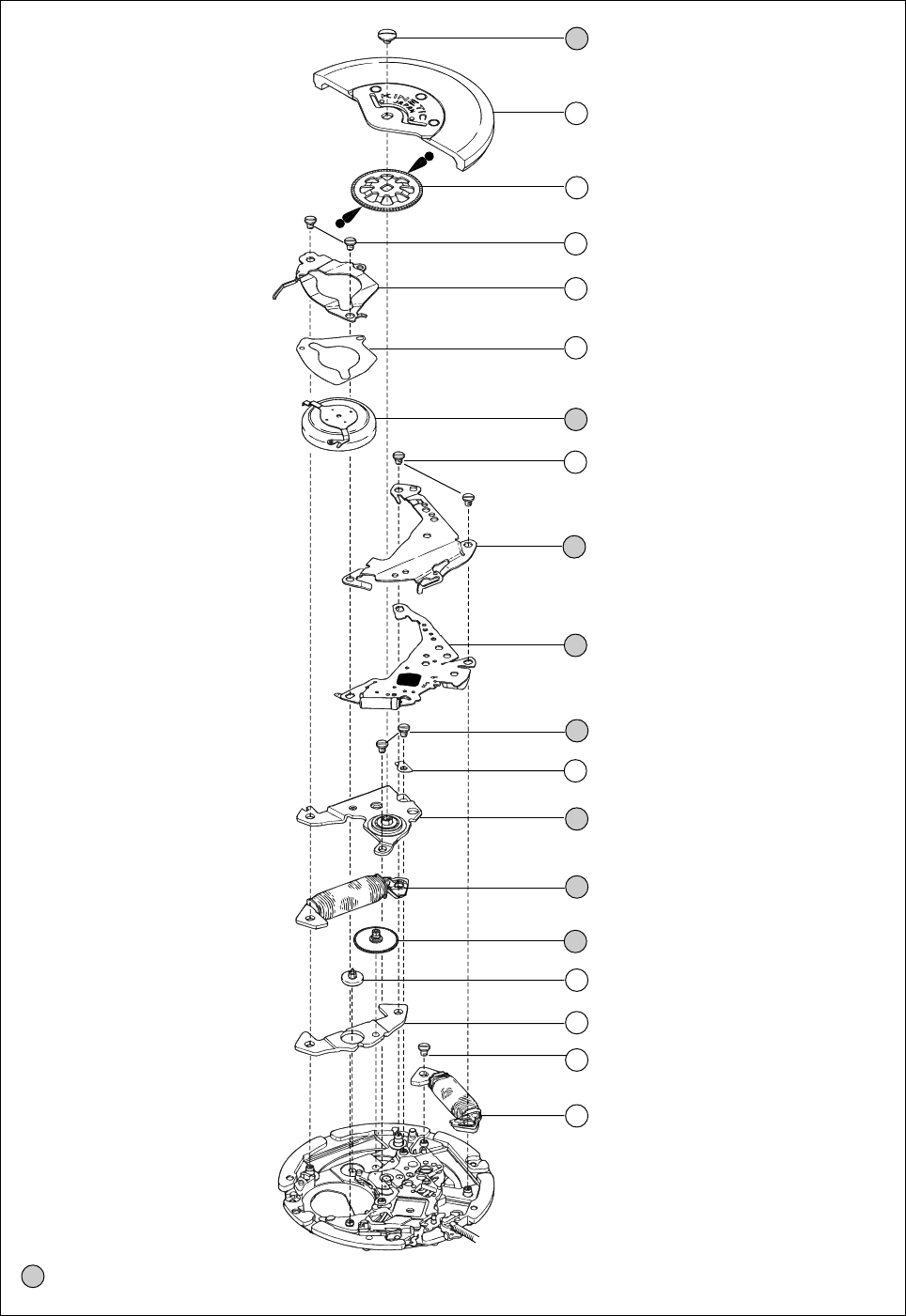

PARTS CATALOGUE

Cal. 5M62A, 5M63A

➡

Please see the remarks on the following pages.

Lubricating of some parts is shown in “II. REMARKS ON DISASSEMBLING AND REASSEMBLING”.

24 0022 490

Oscillating weight screw

25 0500 663

Oscillating weight

26 1002 662

Oscillating weight wheel

27 0022 247

Rechargeable battery clamp screw

28 4225 519

Rechargeable battery clamp

30 3023 44Z

Rechargeable battery unit

31 0022 247

Circuit block cover screw

32 4457 760

Circuit block cover

33 4000 732

Circuit block

34 0022 247

Oscillating weight bridge screw

35 4459 500

Conductive plate

36 0198 662

Oscillating weight bridge

37 4002 514

Generating coil block

38 1002 660

Intermediate wheel for generating rotor

29 4216 519

Insulator for rechargeable battery

39 4146 518

Generating rotor

40 4239 519

Generating stator

41 0022 247

Coil block screw

42 4002 516

Coil block
